Specifying connection properities v55

Migration Toolkit uses the configuration and connection information stored in the toolkit.properties file during the migration process to identify and connect to the source and target databases.

On Linux, the toolkit.properties file is located in /usr/edb/migrationtoolkit/etc.

On Windows, the file is located in C:\Program Files\edb\mtk\etc.

On Mac OS, the file is located in /Library/edb/mtk/etc.

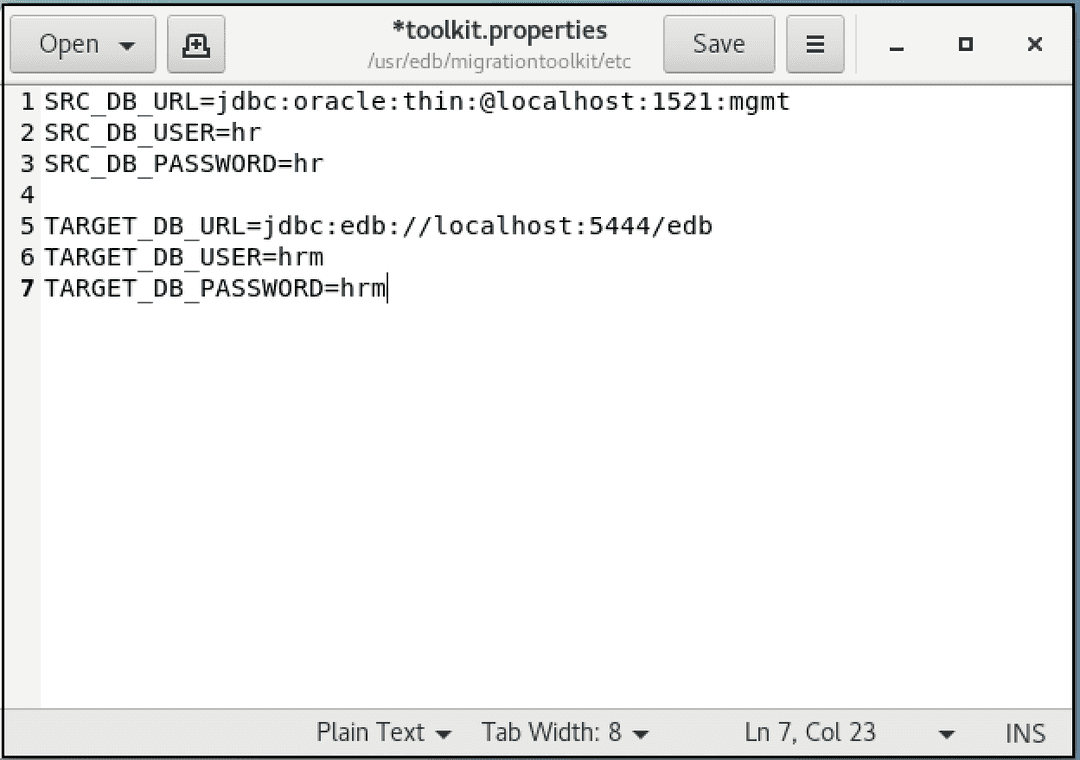

The figure shows a sample toolkit.properties file:

Before executing Migration Toolkit commands, modify the toolkit.properties file with the editor of your choice. Update the file to include the following information:

• SRC_DB_URL specifies how Migration Toolkit connects to the source database. Details on forming the URL for each source database follows.
• SRC_DB_USER specifies a user name (with sufficient privileges) in the source database.
• SRC_DB_PASSWORD specifies the password of the source database user.
• TARGET_DB_URL specifies the JDBC URL of the target database.
• TARGET_DB_USER specifies the name of a privileged target database user.
• TARGET_DB_PASSWORD specifies the password of the target database user.

For specifying a target database on BigAnimal, see Defining a BigAnimal URL.

Defining an Advanced Server URL

Migration Toolkit helps with migration from the following platforms to Advanced Server:

• Oracle
• PostgreSQL
• MySQL
• Sybase
• SQL Server

For a definitive list of the objects migrated from each database type, refer to Functionality overview.

Migration Toolkit reads connection specifications for the source and the target database from the toolkit.properties file. Connection information for each must include:

• The URL of the database
• The name of a privileged user
• The password associated with the specified user

The URL conforms to JDBC standards and takes the form:

{TARGET_DB_URL|SRC_DB_URL}=jdbc:edb://<host>:<port><database_id>

An Advanced Server URL contains the following information:

• jdbc — The protocol is always jdbc.

• edb — If you're using Advanced Server, specify edb for the subprotocol value.

• <host> — The name or IP address of the host where the Postgres instance is running.

• <port> — The port number that the Advanced Server database listener is monitoring. The default port number is 5444.

• <database_id> — The name of the source or target database.

• {TARGET_DB_USER|SRC_DB_USER} — Specifies a user with privileges to create each type of object migrated. If migrating data into a table, the specified user might also require insert, truncate, and references privileges for each target table.

• {TARGET_DB_PASSWORD|SRC_DB_PASSWORD} — Set to the password of the privileged Advanced Server user.

Defining a PostgreSQL URL

Migration Toolkit helps with migration from the following platforms to PostgreSQL:

• Oracle
• Advanced Server
• MySQL
• SQL Server

For a definitive list of the objects migrated from each database type, refer to Functionality overview.

Migration Toolkit reads connection specifications for the source and the target database from the toolkit.properties file. Connection information for each must include:

• The URL of the database
• The name of a privileged user
• The password associated with the specified user

A PostgreSQL URL conforms to JDBC standards and takes the form:

{SRC_DB_URL|TARGET_DB_URL}=jdbc:postgresql://<host>:<port>/<database_id>

The URL contains the following information:

• jdbc — The protocol is always jdbc.

• postgresql — If you're using PostgreSQL, specify postgresql for the subprotocol value.

• <host> — The name or IP address of the host where the Postgres instance is running.

• <port> — The port number that the Postgres database listener is monitoring. The default port number is 5432.

• <database_id> — The name of the source or target database.

• {SRC_DB_USER|TARGET_DB_USER} — Specify a user with privileges to create each type of object migrated. If migrating data into a table, the specified user might also need insert, truncate, and references privileges for each target table.

• {SRC_DB_PASSWORD|TARGET_DB_PASSWORD} — Set to the password of the privileged PostgreSQL user.

Defining a BigAnimal URL

Migration Toolkit helps with migration from the following platforms to BigAnimal:

• Oracle
• Advanced Server
• PostgreSQL
• MySQL
• SQL Server

Migration Toolkit reads connection specifications for the source and the target database from the toolkit.properties file. Connection information for each must include:

• The URL of the database
• The name of a privileged user
• The password associated with the specified user

When migrating to BigAnimal, TARGET_DB_URL takes the form of a JDBC URL. For example:

jdbc:<postgres_type>://<host_name>[:<port>]/<database_id>?sslmode=<sslmode>

The URL contains the following information:

• jdbc — The protocol is always jdbc.

• postgres_type — The subprotocol is the Postgres type. Specify edb if you're using Advanced Server or postgresql if you're using PostgreSQL.

• <host_name> — The host name of your cluster. You can copy it from the Host field on the Connect tab in the BigAnimal portal.

• <port> — The port number that the database listener is monitoring. You can copy it from the Port field on the Connect tab in the BigAnimal portal.

• <database_id> — The name of the target database. Set this to the name of the database in your cluster that you want to use as your migration target database. The name of the default database for your cluster is shown in the Dbname field on the Connect tab in the BigAnimal portal. Often a separate database is created for use as the migration target.

• TARGET_DB_USER — Specifies the name of a privileged database user. You can copy it from the User field on the Connect tab in the BigAnimal portal.

• TARGET_DB_PASSWORD — Contains the password of the specified user.

• sslmode — Either "require" or "verify-full". See Recommended settings for SSL mode. Listed at the end of the Service URI value on the Connect tab in the BigAnimal portal.

Defining an Oracle URL

Migration Toolkit helps with migration from an Oracle database to a PostgreSQL or Advanced Server database. When migrating from Oracle, you must specify connection specifications for the Oracle source database in the toolkit.properties file. The connection information must include:

• The URL of the Oracle database
• The name of a privileged user
• The password associated with the specified user

When migrating from an Oracle database, SRC_DB_URL must contain a JDBC URL, specified in one of two forms. The first form is:

jdbc:oracle:thin:@<host_name>:<port>:<database_id>

The second form is:

jdbc:oracle:thin:@//<host_name>:<port>{<database_id|service_name>}

An Oracle URL contains the following information:

• jdbc — The protocol is always jdbc.

• oracle — The subprotocol is always oracle.

• thin — The driver type. Specify a driver type of thin.

• <host_name> — The name or IP address of the host where the Oracle server is running.

• <port> — The port number that the Oracle database listener is monitoring.

• <database_id> — The database SID of the Oracle database.

• <service_name> — The name of the Oracle service.

• SRC_DB_USER — Specifies the name of a privileged Oracle user. The Oracle user needs read access to the source database objects you want to migrate. If you want to migrate users/roles and related profiles/privileges, grant the Oracle user SELECT privileges on the following Oracle catalog objects:

  • DBA_ROLES
  • DBA_USERS
  • DBA_TAB_PRIVS
  • DBA_PROFILES
  • DBA_ROLE_PRIVS
  • ROLE_ROLE_PRIVS
  • DBA_SYS_PRIVS

• SRC_DB_PASSWORD — Contains the password of the specified user.

Defining a SQL Server URL

Migration Toolkit helps with migration from an SQL Server database to a PostgreSQL or Advanced Server database. Migration Toolkit supports migration of the following object definitions:

• Schemas
• Tables
• Table data
• Constraints
• Indexes

Migration Toolkit reads connection specifications for the source database from the toolkit.properties file. The connection information must include:

• The URL of the source database
• The name of a privileged user
• The password associated with the specified user

If you're connecting to a SQL Server database, SRC_DB_URL takes the form of a Microsoft JDBC URL (recommended) or a JTDS URL.

Microsoft JDBC URL

By default, Microsoft JDBC Driver for SQL Server uses TLS encryption for all communication between the client and the SQL Server. Set encrypt to false, if you want to disable TLS encryption. For more information about connecting to a Microsoft SQL Server using JDBC type 4 driver, see Building the connection URL.

jdbc:sqlserver://<server_name>:<port>[;databaseName=<database_id>][;encrypt=false]

A SQL server URL contains the following information:

• jdbc — The protocol is always jdbc.

• sqlserver — The server type is always sqlserver.

• <server_name> — The name or IP address of the host where the source server is running.

• <port> — The port number that the source database listener is monitoring.

• <database_id> — The name of the source database.

• SRC_DB_USER — Specifies the name of a privileged SQL Server user.

• SRC_DB_PASSWORD — Contains the password of the specified user.

JTDS URL

jdbc:jtds:sqlserver://<server_name>:<port>/<database_id>

A SQL server URL contains the following information:

• jdbc — The protocol is always jdbc.

• jtds — The driver name is always jtds.

• sqlserver — The server type is always sqlserver.

• <server_name> — The name or IP address of the host where the source server is running.

• <port> — The port number that the source database listener is monitoring.

• <database_id> — The name of the source database.

• SRC_DB_USER — Specifies the name of a privileged SQL Server user.

• SRC_DB_PASSWORD — Contains the password of the specified user.

Defining a MySQL URL

Migration Toolkit helps with migration from a MySQL database to an Advanced Server or PostgreSQL database. When migrating from MySQL, you must specify connection specifications for the MySQL source database in the toolkit.properties file. The connection information must include:

• The URL of the source database
• The name of a privileged user
• The password associated with the specified user

When migrating from MySQL, SRC_DB_URL takes the form of a JDBC URL. For example:

jdbc:mysql://<host_name>[:<port>]/<database_id>

The URL contains the following information:

• jdbc — The protocol is always jdbc.

• mysql — The subprotocol is always mysql.

• <host_name> — The name or IP address of the host where the source server is running.

• [<port>] — The port number that the MySQL database listener is monitoring.

• <database_id> — The name of the source database.

• SRC_DB_USER — Specifies the name of a privileged MySQL user.

• SRC_DB_PASSWORD — Contains the password of the specified user.

TINYINT(1) is mapped to BIT(1) in PostgreSQL/EDB Postgres Advanced Server (which might not be expected in some cases). But as the MySQL JDBC driver reports it as BIT(1), Migration Toolkit maps it to BIT(1) in PostgreSQL/EDB Postgres Advanced Server.

Unlike TINYINT(1) that can hold the values -128 to 127, BIT(1) can hold only 0 and 1. So if you're storing any value other than 0 and 1 in this field, you might need to change the default behavior of the MySQL JDBC driver so that the driver reports it as TINYINT.

To change this behavior, set the following URL option in the connection string:

jdbc:mysql://localhost:3306/world?tinyInt1isBit=false

In this case, the JDBC driver reports TINYINT(1) as TINYINT and is mapped to SMALLINT in the target PostgreSQL/EDB Postgres Advanced Server.

Defining a Sybase URL

Migration Toolkit helps with migration from a Sybase database to an Advanced Server database. When migrating from Sybase, you must specify connection specifications for the Sybase source database in the toolkit.properties file. The connection information must include:

• The URL of the source database
• The name of a privileged user
• The password associated with the specified user

When migrating from Sybase, SRC_DB_URL takes the form of a JTDS URL. For example:

jdbc:jtds:sybase://<host_name>[:<port>]/<database_id>

A Sybase URL contains the following information:

• jdbc — The protocol is always jdbc.

• jtds — The driver name is always jtds.

• sybase — The server type is always sybase.

• <host_name> — The name or IP address of the host where the source server is running.

• <port> — The port number that the Sybase database listener is monitoring.

• <database_id> — The name of the source database.

• SRC_DB_USER — Specifies the name of a privileged Sybase user.

• SRC_DB_PASSWORD — Contains the password of the specified user.
