Configuring streaming replication v4
Configuring a replication scenario can be complex. For detailed information about configuration options, see the PostgreSQL core documentation.
You might want to use a
.pgpass file to enable md5 authentication for the replication user. This might not be the safest authentication method for your environment. For more information about the supported authentication options, see the PostgreSQL core documentation.
From Version 3.10 onwards, Failover Manager uses
pg_ctl utility for standby promotion. You don't need to set the
promote_trigger_file parameter for promotion of a standby server.
Limited support for cascading replication

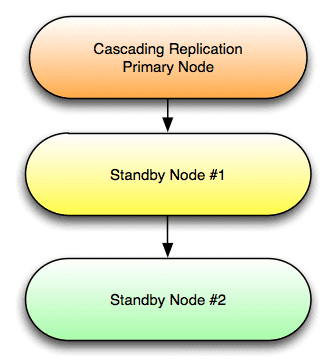

While Failover Manager doesn't provide full support for cascading replication, it does provide limited support for simple failover in a cascading replication scenario. Cascading replication allows a standby node to stream to another standby node, reducing the number of connections (and processing overhead) to the primary node.
For detailed information about configuring cascading replication, see the PostgreSQL documentation.
To use Failover Manager in a cascading replication scenario, modify the cluster properties file, setting the following property values on standby node #2:
In the event of a failover, standby node #1 is promoted to the role of primary node. If failover occurs, standby node #2 continues to act as a read-only replica for the new primary node until you take actions to manually reconfigure the replication scenario to contain three nodes.
In the event of a failure of standby node #1, you won't have failover protection, but you'll receive an email notifying you of the failure of the node.
Performing a switchover and switch back to the original primary might not preserve the cascading replication scenario.
