Connectivity v2.0.0

Information about secure network communications in a PGD cluster includes:

• Services
• Domain names resolution using fully qualified domain names (FQDN)
• TLS configuration
• Connecting from an application

Services

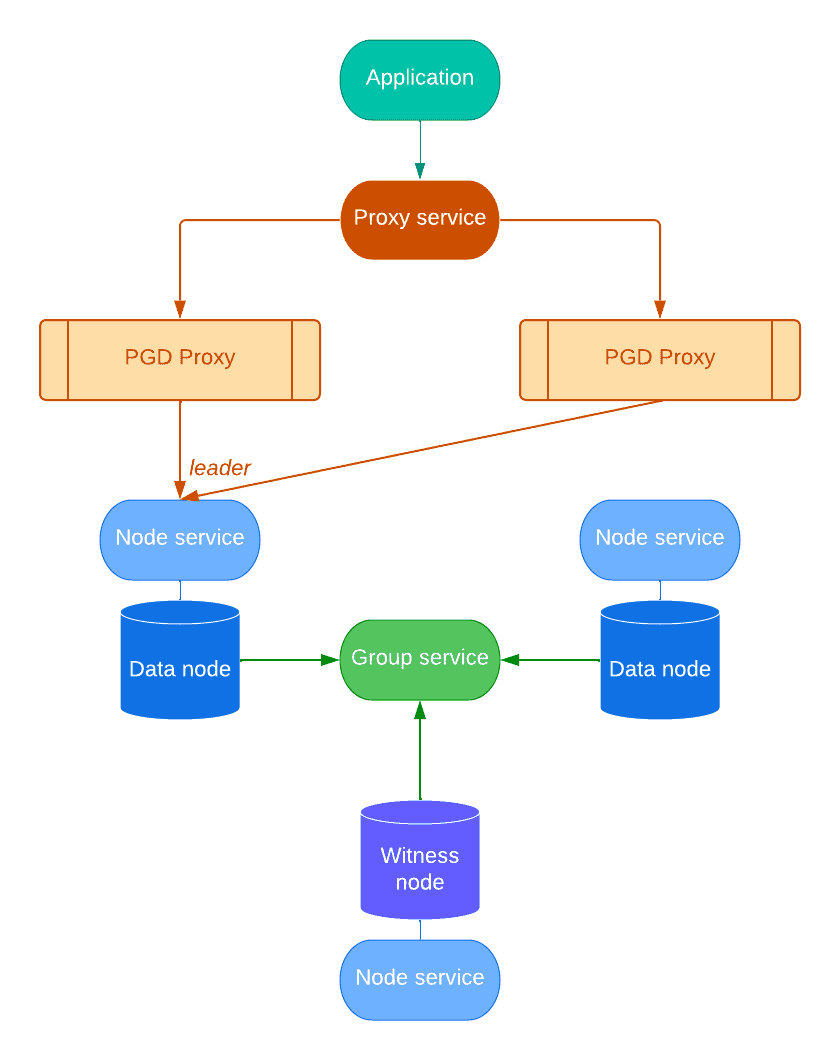

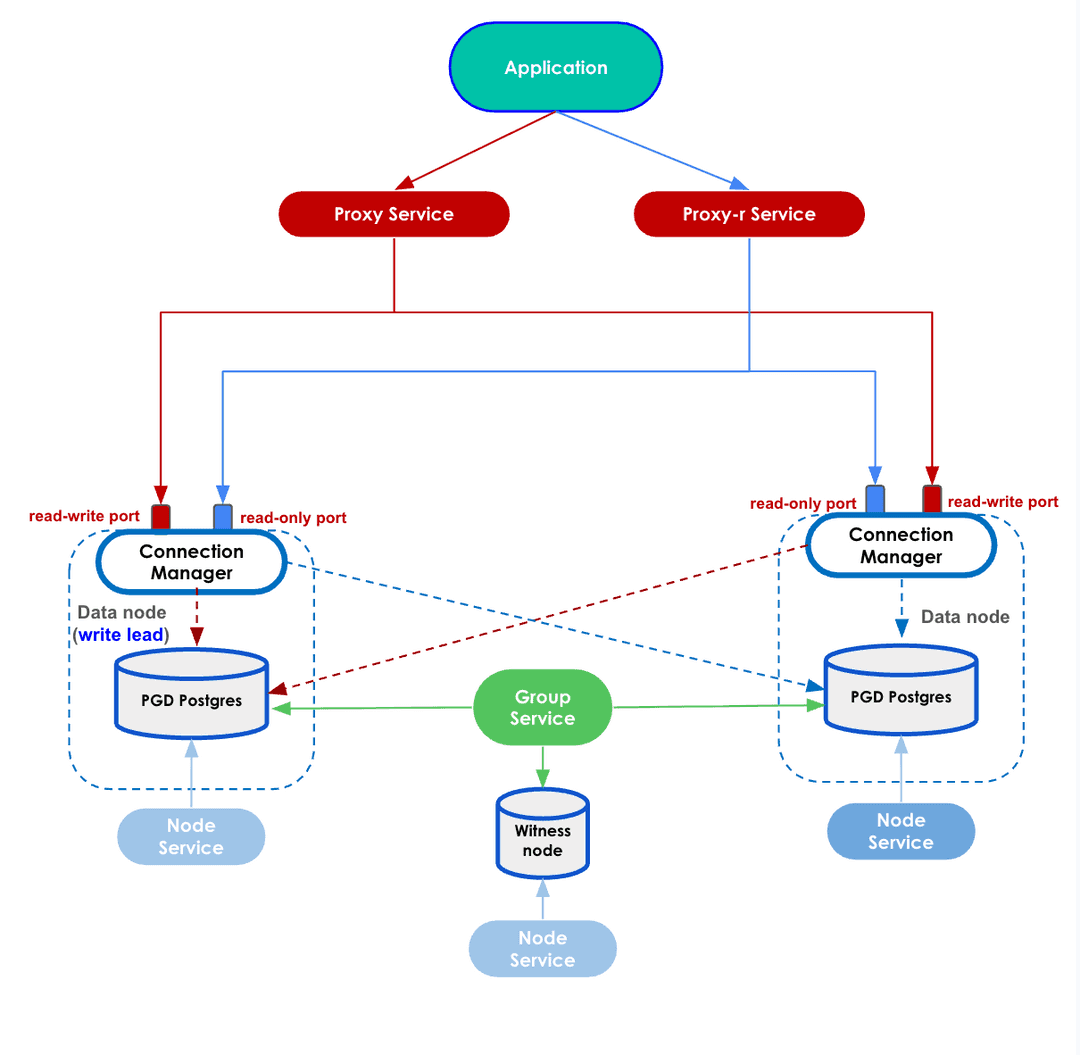

Resources in a PGD cluster are accessible through Kubernetes services. Each PGD group manages several key services:

• A node service for each node, used for internal communications.
• A group service that allows EDB Postgres® AI for CloudNativePG™ Global Cluster to discover and connect to any node within the group.
• A proxy service that enables applications to transparently access the group’s write leader via the read-write port of the PGD Connection Manager for write operations.
• A proxy-r service that enables applications to transparently access the group’s read nodes via the read-only port of the PGD Connection Manager for read operations.

For an example that uses these services, see Connecting an application to a PGD cluster.

Each service is generated from a customizable template in the .spec.connectivity section of the manifest.

All services must be reachable using their FQDN from all the PGD nodes in all the Kubernetes clusters. See Domain names resolution.

EDB CloudNativePG Global Cluster provides a service templating framework that gives you the availability to easily customize services at the following levels:

• Node Service Template : Each PGD node is reachable using a service that can be configured in the .spec.connectivity.nodeServiceTemplate section. You can leverage the variables {node_svc} and {node_fqdn} to substitute for the node service name and the node service's FQDN.

• Group Service Template : Each PGD group has a group service that's a single entry point for the whole group and that can be configured in the .spec.connectivity.groupServiceTemplate section. You can leverage the variables {group_svc} and {group_fqdn} to substitute for the group service name and the group service's FQDN.

• Proxy Service Template : Each PGD group has a proxy service to reach the group write leader through the PGD proxy. It can be configured in the .spec.connectivity.proxyServiceTemplate section. This is the entry-point service for applications. You can leverage the variables {proxy_svc} and {proxy_fqdn} to substitute for the proxy service name and the proxy service's FQDN.

• Proxy Read Service Template : Each PGD group has a proxy service to reach the group read nodes through the PGD proxy. It can be enabled with .spec.proxySettings.enableReadNodeRouting, and can be configured in the .spec.connectivity.proxyReadServiceTemplate section. This is the entry-point service for applications. You can leverage the variables {proxy_svc} and {proxy_fqdn} to substitute for the proxy service name and the proxy service's FQDN.

You can use templates to create a LoadBalancer service or to add arbitrary annotations and labels to a service to integrate with other components available in the Kubernetes system (that is, to create external DNS names or tweak the generated load balancer).

Here is an example of a proxy service template, which creates a LoadBalancer proxy service. Once the service is created, {proxy_svc} will be replaced with the proxy service name, and {proxy_fqdn} will be replaced with the proxy service's FQDN.

spec:
  connectivity:
    ...
    proxyServiceTemplate:
      metadata:
        annotations:
          proxy_service_name: '{proxy_svc}'
          proxy_service_fqdn: '{proxy_fqdn}'
      spec:
        loadBalancerSourceRanges:
        - 0.0.0.0/0
        ports:
        - name: postgres
          port: 5432
          protocol: TCP
          targetPort: 6432
        type: LoadBalancer
      updateStrategy: patch

Domain names resolution

EDB CloudNativePG Global Cluster ensures that all resources in a PGD group have a FQDN, and by convention uses the PGD group name as a prefix for all of them.

As a result, it expects you to define the domain name of the PGD group. This can be done through the .spec.connectivity.dns section, which controls how the FQDNs for the resources are generated with two fields:

• domain — Domain name for all the objects in the PGD group to use (mandatory).
• hostSuffix — Suffix to add to each service in the PGD group (optional).

You can also define a list of additional domain and hostSuffix in .spec.connectivity.dns.additional. Make sure that these additional domain and hostSuffix entries match with the rendered nodeServiceTemplate and groupServiceTemplate. Node Services and Group Services with additional domain and hostSuffix entries will be included in the Subject Alternative Name of the service certificate.

TLS configuration

EDB CloudNativePG Global Cluster requires that resources in a PGD cluster communicate over a secure connection. It relies on PostgreSQL's native support for SSL connections to encrypt client/server communications using TLS protocols for increased security.

Currently, EDB CloudNativePG Global Cluster requires that cert-manager is installed. Cert-manager was chosen as the tool to provision dynamic certificates given that it's widely recognized as the standard in a Kubernetes environment.

The spec.connectivity.tls section describes how the communication between the nodes happens. Please refer to the certificates section for more details on how TLS is configured.

Connecting from an application

Connecting to a PGD Group from an application running inside the same Kubernetes cluster or from outside the cluster is a simple procedure. In both cases, you connect to the proxy service of the PGD Group as the app user. The proxy service is a LoadBalancer service that routes the connection to the write leader or read nodes of the PGD Group, depending on which proxy service it's connecting to.

Connecting from inside the cluster

When connecting from inside the cluster, you can use the proxy service name to connect to the PGD group. The proxy service name is composed of the PGD group name plus -proxy, and the optional host suffix defined in the .spec.connectivity.dns section of the PGDGroup custom resource.

For example, if the PGD group name is my-group, and the host suffix is .my-domain.com, the proxy service name is my-group-proxy.my-domain.com.

Before connecting, you need to get the password for the app user from the app user secret. The app user name is defined by spec.pgd.ownerName, and the app user secret is defined by spec.pgd.ownerCredentialsSecret.

You can get the username and password from the secret using the following commands:

kubectl get secret <app user secret> -o jsonpath='{.data.username}' | base64 --decode
kubectl get secret <app user secret> -o jsonpath='{.data.password}' | base64 --decode

With this, you have all the pieces for a connection string to the PGD group:

postgresql://<app-user>:<app-password>@<proxy-service-name>:5432/<database>

Or, for a psql invocation:

psql -U <app-user> -h <proxy-service-name> <database>

Where app-user and app-password are the values you got from the secret, and database is the name of the database you want to connect to, defined by spec.pgd.databaseName. (The default is app for the app user.)

Connecting from outside the Kubernetes cluster

When connecting from outside the Kubernetes cluster, in the general case, the Ingress resource or a load balancer is necessary. Check your cloud provider or local installation for more information about their behavior in your environment.

Ingresses and load balancers require a pod selector to forward connection to the connection manager running in the data node. When configuring them, we suggest using the following labels:

• k8s.pgd.enterprisedb.io/group — Set the PGD group name.
• k8s.pgd.enterprisedb.io/workloadType — Set to pgd-node-data.

If using Kind or other solutions for local development, the easiest way to access the PGD group from outside is to use port forwarding to the proxy service. You can use the following command to forward port 5432 on your local machine to the proxy service:

kubectl port-forward svc/my-group-proxy.my-domain.com 5432:5432

Where my-group-proxy.my-domain.com is the proxy service name from the previous example.
