Red Hat OpenShift v1

EDB Postgres Distributed for Kubernetes is a certified operator that can be installed on OpenShift using a web interface.

Ensuring access to EDB private registry

The OpenShift install uses pull secrets to access the operand and operator images, which are held in a private repository.

Once you have credentials to the private repo, you need to create two pull secrets in the openshift-operators namespace:

• pgd-operator-pull-secret for the EDB Postgres Distributed for Kubernetes operator images
• postgresql-operator-pull-secret for the EDB Postgres for Kubernetes operator images

You can create each secret using the oc create command:

oc create secret docker-registry pgd-operator-pull-secret \
  -n openshift-operators --docker-server=docker.enterprisedb.com \
  --docker-username="@@REPOSITORY@@" \
  --docker-password="@@TOKEN@@"

oc create secret docker-registry postgresql-operator-pull-secret \
  -n openshift-operators --docker-server=docker.enterprisedb.com \
  --docker-username="@@REPOSITORY@@" \
  --docker-password="@@TOKEN@@"

Where:

• @@REPOSITORY@@ is the name of the repository, as explained in Which repository to choose?.
• @@TOKEN@@ is the repository token for your EDB account, as explained in How to retrieve the token.

Installing the operator

The EDB Postgres Distributed for Kubernetes operator can be found in the Red Hat OperatorHub directly from your OpenShift dashboard.

1. From the hamburger menu, select Operators > OperatorHub.

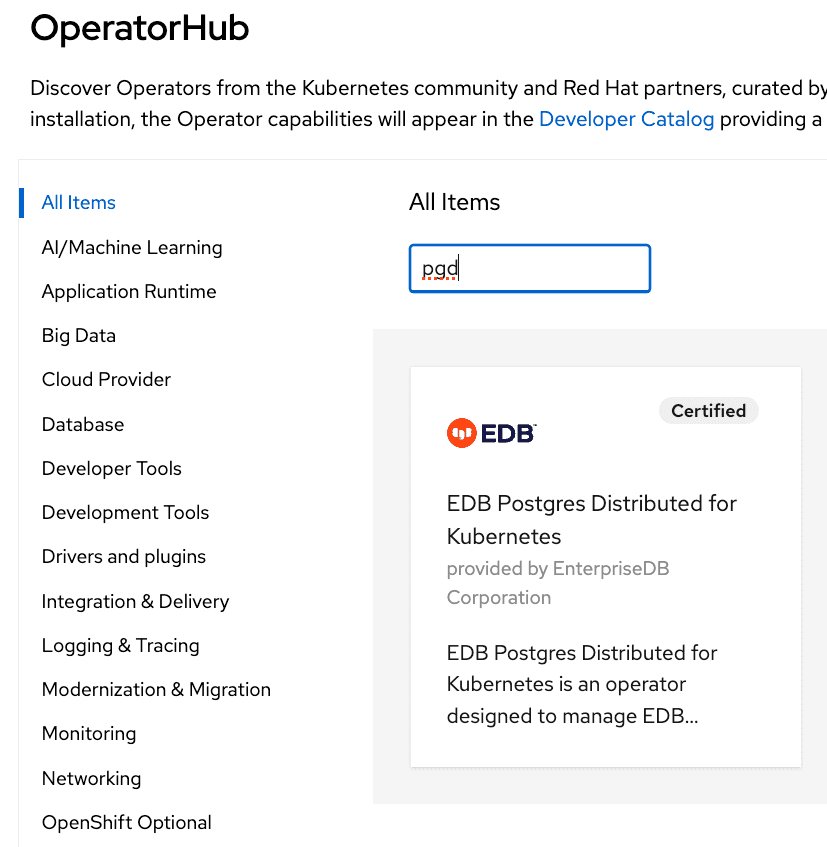

2. In the web console, use the search box to filter the listing. For example, enter EDB or pgd:



3. Read the information about the operator and select Install.

4. In the Operator Installation page, select:

   • The installation mode. Cluster-wide is currently the only mode.
   • The update channel (currently preview).
   • The approval strategy, following the availability on the marketplace of a new release of the operator, certified by Red Hat:
     • Automatic: OLM upgrades the running operator with the new version.
     • Manual: OpenShift waits for human intervention by requiring an approval in the Installed Operators section.

Cluster-wide installation

With cluster-wide installation, you're asking OpenShift to install the operator in the default openshift-operators namespace and to make it available to all the projects in the cluster. This is the default and normally recommended approach to install EDB Postgres Distributed for Kubernetes.

From the web console, for Installation mode, select All namespaces on the cluster (default).

On installation, the operator is visible in all namespaces. In case there were problems during installation, check the logs in any pods in the openshift-operators project on the Workloads > Pods page as you would with any other OpenShift operator.

Creating a PGD cluster

After the installation by OpenShift, the operator deployment is in the openshift-operators namespace. Notice the cert-manager operator was also installed, as was the EDB Postgres for Kubernetes operator (postgresql-operator-controller-manager).

$ oc get deployments -n openshift-operators
NAME                                            READY   UP-TO-DATE   AVAILABLE   AGE
cert-manager-operator                           1/1     1            1           11m
pgd-operator-controller-manager                 1/1     1            1           11m
postgresql-operator-controller-manager-1-20-0   1/1     1            1           23h
…

After checking that the pgd-operator-controller-manager deployment is READY, you can start creating PGD clusters. The EDB Postgres Distributed for Kubernetes repository contains some useful sample files.

You must deploy your PGD clusters on a dedicated namespace/project. The default namespace is reserved.

First, then, create a new namespace, and deploy a self-signed certificate Issuer in it:

oc create ns my-namespace
oc apply -n my-namespace -f \
  https://raw.githubusercontent.com/EnterpriseDB/edb-postgres-for-kubernetes-charts/main/hack/samples/issuer-selfsigned.yaml

Using PGD in a single OpenShift cluster in a single region

Now you can deploy a PGD cluster, for example a flexible 3-region, which contains two data groups and a witness group. You can find the YAML manifest in the file flexible_3regions.yaml.

oc apply -f flexible_3regions.yaml -n my-namespace

Your PGD groups start to come up:

$ oc get pgdgroups -n my-namespace
NAME       DATA INSTANCES   WITNESS INSTANCES   PHASE                PHASE DETAILS   AGE
region-a   2                1                   PGDGroup - Healthy                   23m
region-b   2                1                   PGDGroup - Healthy                   23m
region-c   0                1                   PGDGroup - Healthy                   23m

Using PGD in multiple OpenShift clusters in multiple regions

To deploy PGD in multiple OpenShift clusters in multiple regions, you must first establish a way for the PGD groups to communicate with each other. The recommended way of achieving this with multiple OpenShift clusters is to use Submariner. Configuring the connectivity is outside the scope of this documentation. However, once you've established connectivity between the OpenShift clusters, you can deploy PGD groups synced with one another.

Similar to the single-cluster example, this example creates two data PGD groups and one witness group. In contrast to that example, each group lives in a different OpenShift cluster.

In addition to basic connectivity between the OpenShift clusters, you need to ensure that each OpenShift cluster contains a certificate authority that's trusted by the other OpenShift clusters. This condition is required for the PGD groups to communicate with each other.

The OpenShift clusters can all use the same certificate authority, or each cluster can have its own certificate authority. Either way, you need to ensure that each OpenShift cluster's certificates trust the other OpenShift clusters' certificate authorities.

This example uses a self-signed certificate that has a single certificate authority used for all certificates on all the OpenShift clusters.

The example refers to the OpenShift clusters as OpenShift Cluster A, OpenShift Cluster B, and OpenShift Cluster C. In OpenShift, an installation of the EDB Postgres Distributed for Kubernetes operator from OperatorHub includes an installation of the cert-manager operator. We recommend creating and managing certificates with cert-manager.

1. Create a namespace to hold OpenShift Cluster A, and in it also create the needed objects for a self-signed certificate. Assuming that the PGD operator and the cert-manager are installed, you create a self-signed certificate Issuer in that namespace.

oc create ns pgd-group
oc apply -n pgd-group -f \
  https://raw.githubusercontent.com/EnterpriseDB/edb-postgres-for-kubernetes-charts/main/hack/samples/issuer-selfsigned.yaml

1. After a few moments, cert-manager creates the issuers and certificates. There are also now two secrets in the pgd-group namespace: server-ca-key-pair and client-ca-key-pair. These secrets contain the certificates and private keys for the server and client certificate authorities. You need to copy these secrets to the other OpenShift clusters before applying the issuer-selfsigned.yaml manifest. You can use the oc get secret command to get the contents of the secrets:

oc get secret server-ca-key-pair -n pgd-group -o yaml > server-ca-key-pair.yaml
oc get secret client-ca-key-pair -n pgd-group -o yaml > client-ca-key-pair.yaml

1. After removing the content specific to OpenShift Cluster A from these secrets (such as uid, resourceVersion, and timestamp), you can switch context to OpenShift Cluster B. Then create the namespace, create the secrets in it, and only then apply the issuer-selfsigned.yaml file:

oc create ns pgd-group
oc apply -n pgd-group -f server-ca-key-pair.yaml
oc apply -n pgd-group -f client-ca-key-pair.yaml
oc apply -n pgd-group -f \
  https://raw.githubusercontent.com/EnterpriseDB/edb-postgres-for-kubernetes-charts/main/hack/samples/issuer-selfsigned.yaml

1. You can switch context to OpenShift Cluster C and repeat the same process followed for Cluster B:

oc create ns pgd-group
oc apply -n pgd-group -f server-ca-key-pair.yaml
oc apply -n pgd-group -f client-ca-key-pair.yaml
oc apply -n pgd-group -f \
  https://raw.githubusercontent.com/EnterpriseDB/edb-postgres-for-kubernetes-charts/main/hack/samples/issuer-selfsigned.yaml

1. On OpenShift Cluster A, you can create your first PGD group, called region-a. The YAML manifest for the PGD group is:

apiVersion: pgd.k8s.enterprisedb.io/v1beta1
kind: PGDGroup
metadata:
  name: region-a
spec:
  instances: 2
  proxyInstances: 2
  witnessInstances: 1
  pgd:
    parentGroup:
      name: world
      create: true
    discovery:
      - host: region-a-group.pgd-group.svc.clusterset.local
      - host: region-b-group.pgd-group.svc.clusterset.local
      - host: region-c-group.pgd-group.svc.clusterset.local
  cnp:
    storage:
      size: 1Gi
  connectivity:
    dns:
      domain: "pgd-group.svc.clusterset.local"
      additional:
        - domain: alternate.domain
        - domain: my.domain
          hostSuffix: -dc1
    tls:
      mode: verify-ca
      clientCert:
        caCertSecret: client-ca-key-pair
        certManager:
          spec:
            issuerRef:
              name: client-ca-issuer
              kind: Issuer
              group: cert-manager.io
      serverCert:
        caCertSecret: server-ca-key-pair
        certManager:
          spec:
            issuerRef:
              name: server-ca-issuer
              kind: Issuer
              group: cert-manager.io

!!! Important The format of the hostnames in the discovery section differs from the single-cluster example. That's because Submariner is being used to connect the OpenShift clusters, and Submariner uses the <service>.<ns>.svc.clusterset.local domain to route traffic between the OpenShift clusters. region-a-group is the name of the service to be created for the PGD group named region-a.

1. Apply the region-a PGD group YAML:

oc apply -f region-a.yaml -n pgd-group

1. You can now switch context to OpenShift Cluster B and create the second PGD group. The YAML for the PGD group in Cluster B is as follows. The only difference is the metadata.name.

apiVersion: pgd.k8s.enterprisedb.io/v1beta1
kind: PGDGroup
metadata:
  name: region-b
spec:
  instances: 2
  proxyInstances: 2
  witnessInstances: 1
  pgd:
    parentGroup:
      name: world
    discovery:
      - host: region-a-group.pgd-group.svc.clusterset.local
      - host: region-b-group.pgd-group.svc.clusterset.local
      - host: region-c-group.pgd-group.svc.clusterset.local
  cnp:
    storage:
      size: 1Gi
  connectivity:
    dns:
      domain: "pgd-group.svc.clusterset.local"
    tls:
      mode: verify-ca
      clientCert:
        caCertSecret: client-ca-key-pair
        certManager:
          spec:
            issuerRef:
              name: client-ca-issuer
              kind: Issuer
              group: cert-manager.io
      serverCert:
        caCertSecret: server-ca-key-pair
        certManager:
          spec:
            issuerRef:
              name: server-ca-issuer
              kind: Issuer
              group: cert-manager.io

1. Apply the region-b PGD group YAML:

oc apply -f region-b.yaml -n pgd-group

1. You can switch context to OpenShift Cluster C and create the third PGD group. The YAML for the PGD group is:

apiVersion: pgd.k8s.enterprisedb.io/v1beta1
kind: PGDGroup
metadata:
  name: region-c
spec:
  instances: 0
  proxyInstances: 0
  witnessInstances: 1
  pgd:
    parentGroup:
      name: world
    discovery:
      - host: region-a-group.pgd-group.svc.clusterset.local
      - host: region-b-group.pgd-group.svc.clusterset.local
      - host: region-c-group.pgd-group.svc.clusterset.local
  cnp:
    storage:
      size: 1Gi
  connectivity:
    dns:
      domain: "pgd-group.svc.clusterset.local"
    tls:
      mode: verify-ca
      clientCert:
        caCertSecret: client-ca-key-pair
        certManager:
          spec:
            issuerRef:
              name: client-ca-issuer
              kind: Issuer
              group: cert-manager.io
      serverCert:
        caCertSecret: server-ca-key-pair
        certManager:
          spec:
            issuerRef:
              name: server-ca-issuer
              kind: Issuer
              group: cert-manager.io

1. Apply the region-c PGD group YAML:

oc apply -f region-c.yaml -n pgd-group

Now you can switch context back to OpenShift Cluster A and check the status of the PGD group there:

oc get pgdgroup region-a -n pgd-group

The PGD group is in the phase PGD - Waiting for node discovery.

After creating the PGD groups in each OpenShift cluster, which in turn creates the services for each node, you need to expose the services to the other OpenShift clusters. You can do this in various ways.

If you're using Submariner, you can do it using the subctl command. Run the subctl export service command for each service in the pgd-group namespace that has a -group or -node suffix. You can do this by running the following bash for loop on each cluster:

for service in $(oc get svc -n pgd-group --no-headers -o custom-columns="NAME:.metadata.name" | grep -E '(-group|-node)$'); do
  subctl export service $service -n pgd-group
done

After a few minutes, the status shows that the PGD group is healthy. Once each PGD group is healthy, you can write to the app database in either of the two data nodes: region-a or region-b. The data is replicated to the other data node.
