Quick start on RHEL 8

Suggest edits

Use this quick start to create a highly available demo cluster using EDB Postgres Advanced Server or EDB Postgres Extended Server version 15 on RHEL 8. The etcd hosts will be called etcd1, etcd2, and etcd3. The two database nodes in streaming replication are pg-patroni1 and pg-patroni2.

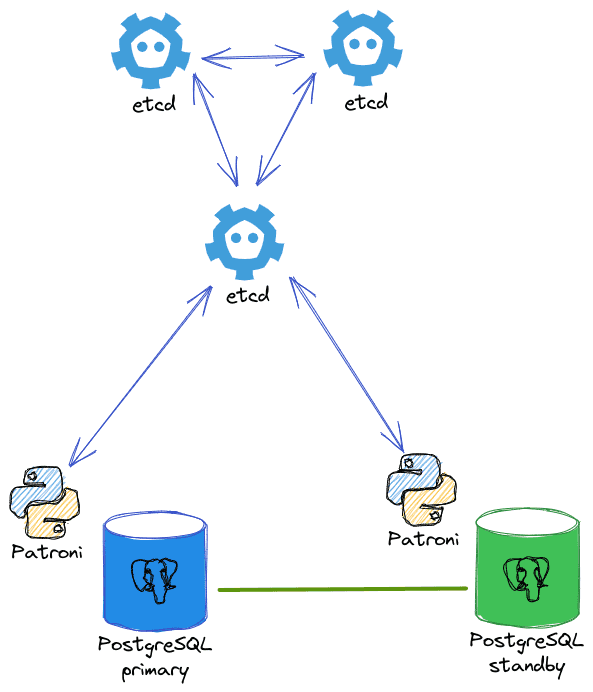

Demo diagram


1. Etcd

See Installing and configuring etcd to install and set up etcd.

2. EDB Postgres Advanced or Extended Server

On both pg-patroni1 and pg-patroni2 hosts, install your preferred flavor of Postgres flavor. See EDB Postgres Advanced Server or EDB Postgres Extended Server for more information about installing these products using the EDB repository.

The Postgres flavor you choose determines your environment variables.

For EDB Postgres Advanced Server, use the following settings:

export PGPORT=5444
export PGUSER=enterprisedb
export PGGROUP=enterprisedb
export PGDATA="/var/lib/edb/as15/data"
export PGBIN="/usr/edb/as15/bin"
export PGBINNAME="edb-postgres"
export PGSOCKET="/var/run/edb/as15"

For EDB Postgres Extended Server, use the following settings:

export PGPORT=5432
export PGUSER=postgres
export PGGROUP=postgres
export PGDATA="/var/lib/edb-pge/15/data"
export PGBIN="/usr/edb/pge15/bin"
export PGBINNAME="postgres"
export PGSOCKET="/var/run/edb-pge"

Patroni bootstraps (creates) the initial Postgres cluster and is in charge of starting the service, so make sure systemctl is disabled for this service:

sudo systemctl disable edb-as-15.service

or

sudo systemctl disable edb-pge-15.service

Configure the firewall on each database node so they accept connections to the Postgres service:

sudo firewall-cmd --quiet --zone=public --add-port=$PGPORT/tcp --permanent
sudo firewall-cmd --quiet --reload

3. Watchdog

Patroni is the component interacting with the watchdog device. Set the permissions of the software watchdog on both pg-patroni1 and pg-patroni2 hosts:

cat <<EOF | sudo tee /etc/udev/rules.d/99-watchdog.rules
KERNEL=="watchdog", OWNER="$PGUSER", GROUP="$PGGROUP"
EOF
sudo sh -c 'echo "softdog" >> /etc/modules-load.d/softdog.conf'
sudo modprobe softdog
sudo chown $PGUSER:$PGGROUP /dev/watchdog

4. Patroni

On both pg-patroni1 and pg-patroni2 hosts, install Patroni and its dependencies for etcd. See Installing Patroni.

Define the Patroni configuration in /etc/patroni.yml:

CLUSTER_NAME="demo-cluster-1"
MY_NAME=$(hostname --short)
MY_IP=$(hostname -I | awk ' {print $1}')
cat <<EOF | sudo tee /etc/patroni.yml
scope: $CLUSTER_NAME
namespace: /db/
name: $MY_NAME

restapi:
  listen: "0.0.0.0:8008"
  connect_address: "$MY_IP:8008"
  authentication:
    username: patroni
    password: mySupeSecretPassword

etcd3:
    hosts:
    - etcd1:2379
    - etcd2:2379
    - etcd3:2379

bootstrap:
  dcs:
    ttl: 30
    loop_wait: 10
    retry_timeout: 10
    maximum_lag_on_failover: 1048576
    postgresql:
      use_pg_rewind: true
      use_slots: true
      parameters:
        archive_mode: "on"
        archive_command: "/bin/true"

  initdb:
  - encoding: UTF8
  - data-checksums
  - auth-local: peer
  - auth-host: scram-sha-256

  pg_hba:
  - host replication replicator 0.0.0.0/0 scram-sha-256
  - host all all 0.0.0.0/0 scram-sha-256

  # Some additional users which needs to be created after initializing new cluster
  users:
    admin:
      password: admin%
      options:
        - createrole
        - createdb

postgresql:
  listen: "0.0.0.0:$PGPORT"
  connect_address: "$MY_IP:$PGPORT"
  data_dir: $PGDATA
  bin_dir: $PGBIN
  bin_name:
    postgres: $PGBINNAME
  pgpass: /tmp/pgpass0
  authentication:
    replication:
      username: replicator
      password: confidential
    superuser:
      username: $PGUSER
      password: my-super-password
    rewind:
      username: rewind_user
      password: rewind_password
  parameters:
    unix_socket_directories: "$PGSOCKET,/tmp"

watchdog:
  mode: required
  device: /dev/watchdog
  safety_margin: 5

tags:
  nofailover: false
  noloadbalance: false
  clonefrom: false
  nosync: false
EOF
Note

In the postgresql: authentication: section in the example, a superuser is created during initialization (initdb) and later used by Patroni to connect to the database. The replication user is created and used by the standby servers to access the replication source by way of streaming replication. Finally, a rewind user is created and is used with pg_rewind when needed. We then recommend changing those passwords in the example configuration to match your password policy.

$MY_IP and $MY_NAME are specific to the local host. Otherwise, the patroni.yml configuration is the same on all Patroni nodes.

Patroni expects to find the postgres binary in the bin_dir location, while the EDB Postgres Advanced Server binary is called edb-postgres. The postgresql.bin_name setting does not exist in Patroni prior to the 3.0.3 release and will be silently ignored by older versions. For these versions, create an appropriately named symbolic link that points to the relevant binary:

sudo ln -s /usr/edb/as15/bin/edb-postgres /usr/edb/as15/bin/postgres

Depending on the Patroni installation source, a systemd file might have already been created. Define your own file with the accurate system user, group, and configuration path:

cat <<EOF | sudo tee /etc/systemd/system/patroni.service
[Unit]
Description=Runners to orchestrate a high-availability Postgres
After=syslog.target network.target

[Service]
Type=simple
User=$PGUSER
Group=$PGGROUP
EnvironmentFile=-/etc/patroni_env.conf
ExecStart=patroni /etc/patroni.yml
ExecReload=/bin/kill -s HUP \$MAINPID
KillMode=process
TimeoutSec=30
Restart=no

[Install]
WantedBy=multi-user.target
EOF
sudo systemctl daemon-reload
sudo systemctl enable patroni
sudo systemctl start patroni

Start the Patroni service first on pg-patroni1 so it becomes the leader of your Postgres cluster. Then start pg-patroni2.

To list the members of the cluster, use the patronictl command:

patronictl -c /etc/patroni.yml list
Output
+ Cluster: demo-cluster-1 (7104275668989116902) ----+----+-----------+
| Member      | Host            | Role    | State   | TL | Lag in MB |
+-------------+-----------------+---------+---------+----+-----------+
| pg-patroni1 | 192.168.121.61  | Leader  | running |  1 |           |
| pg-patroni2 | 192.168.121.135 | Replica | running |  1 |         0 |
+-------------+-----------------+---------+---------+----+-----------+

The Patroni REST API is available on port 8008. Configure the firewall if needed:

sudo firewall-cmd --quiet --zone=public --add-port=8008/tcp --permanent
sudo firewall-cmd --quiet --reload

5. HAProxy

The PGDG yum extras repositories contain haproxy packages.

To set up and use yum.postgresql.org on your systems, see the PostgreSQL Linux downloads website.

For the purpose of this example, install HAProxy on both pg-patroni1 and pg-patroni2 hosts:

sudo dnf --enablerepo=pgdg-rhel8-extras install -y haproxy
sudo cp /etc/haproxy/haproxy.cfg /etc/haproxy/haproxy.cfg.bck
cat <<EOF | sudo tee /etc/haproxy/haproxy.cfg
global
    maxconn 100

defaults
    log    global
    mode    tcp
    retries 2
    timeout client 30m
    timeout connect 4s
    timeout server 30m
    timeout check 5s

listen stats
    mode http
    bind *:7000
    stats enable
    stats uri /

listen read-write
    bind *:5000
    option httpchk OPTIONS /read-write
    http-check expect status 200
    default-server inter 3s fall 3 rise 2 on-marked-down shutdown-sessions
    server pg-patroni1 pg-patroni1:$PGPORT maxconn 100 check port 8008
    server pg-patroni2 pg-patroni2:$PGPORT maxconn 100 check port 8008

listen read-only
    balance roundrobin
    bind *:5001
    option httpchk OPTIONS /replica
    http-check expect status 200
    default-server inter 3s fall 3 rise 2 on-marked-down shutdown-sessions
    server pg-patroni1 pg-patroni1:$PGPORT maxconn 100 check port 8008
    server pg-patroni2 pg-patroni2:$PGPORT maxconn 100 check port 8008
EOF
sudo setsebool -P haproxy_connect_any=1
sudo systemctl enable haproxy
sudo systemctl start haproxy

There are two sections: read-write, using port 5000, and read-only, using port 5001. All Postgres hosts are included in both sections because they are all potential candidates to be either primary or standby. For HAproxy to know the role each host currently has, it queries the Patroni REST API:

curl -s http://pg-patroni1:8008
Output
{
   "state":"running",
   "postmaster_start_time":"2023-03-21 11:23:54.709344+00:00",
   "role":"master",
   "server_version":150002,
   "xlog":{
      "location":67112696
   },
   "timeline":1,
   "replication":[
      {
        "usename":"replicator",
        "application_name": "pg-patroni2",
        "client_addr": "192.168.121.135",
        "state":"streaming",
        "sync_state":"async",
        "sync_priority":0
      }
   ],
   "dcs_last_seen":1679401036,
   "database_system_identifier":"7104275668989116902",
   "patroni":{
      "version":"3.0.1",
      "scope":"demo-cluster-1"
   }
}
Note

By using the /replica endpoint, Patroni redirects only to a standby server. Use /read-only to also include the primary.

Configure the firewall if needed to access the ports for HAProxy to listen on:

sudo firewall-cmd --quiet --zone=public --add-port=7000/tcp --permanent
sudo firewall-cmd --quiet --zone=public --add-port=5000/tcp --permanent
sudo firewall-cmd --quiet --zone=public --add-port=5001/tcp --permanent
sudo firewall-cmd --quiet --reload

You can now use port 5000 and port 5001 to choose between read-write or read-only connections:

psql -U admin -d postgres -h pg-patroni1 -p 5000 -c "SELECT pg_is_in_recovery();"
Output
 pg_is_in_recovery
-------------------
 f
(1 row)
psql -U admin -d postgres -h pg-patroni1 -p 5001 -c "SELECT pg_is_in_recovery();"
Output
 pg_is_in_recovery
-------------------
 t
(1 row)
