Advanced Server JDBC Connector Overview v42.2.19.1

Edit this page

Sun Microsystems created a standardized interface for connecting Java applications to databases known as Java Database Connectivity (JDBC). The EDB JDBC Connector connects a Java application to a Postgres database.

JDBC Driver Types

There are currently four different types of JDBC drivers, each with their own specific implementation, use and limitations. The EDB JDBC Connector is a Type 4 driver.

Type 1 Driver

  • This driver type is the JDBC-ODBC bridge.
  • It is limited to running locally.
  • Must have ODBC installed on computer.
  • Must have ODBC driver for specific database installed on computer.
  • Generally can’t run inside an applet because of Native Method calls.

Type 2 Driver

  • This is the native database library driver.
  • Uses Native Database library on computer to access database.
  • Generally can’t run inside an applet because of Native Method calls.
  • Must have database library installed on client.

Type 3 Driver

  • 100% Java Driver, no native methods.
  • Does not require pre-installation on client.
  • Can be downloaded and configured on-the-fly just like any Java class file.
  • Uses a proprietary protocol for talking with a middleware server.
  • Middleware server converts from proprietary calls to DBMS specific calls

Type 4 Driver

  • 100% Java Driver, no native methods.
  • Does not require pre-installation on client.
  • Can be downloaded and configured on-the-fly just like any Java class file.
  • Unlike Type III driver, talks directly with the DBMS server.
  • Converts JDBC calls directly to database specific calls.

The JDBC Interface

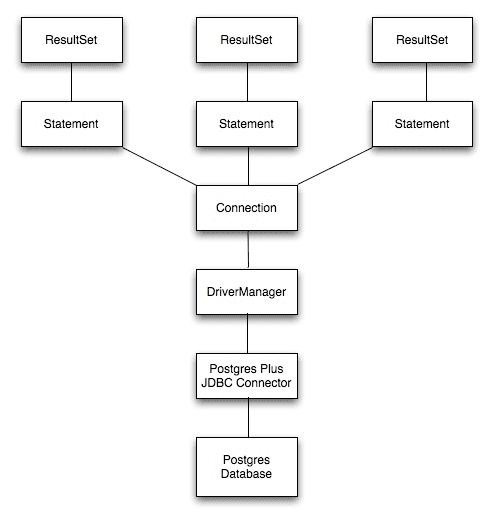

The following figure shows the core API interfaces in the JDBC specification and how they relate to each other. These interfaces are implemented in the java.sql package.

JDBC Class Relationships

JDBC Class Relationships

JDBC Classes and Interfaces

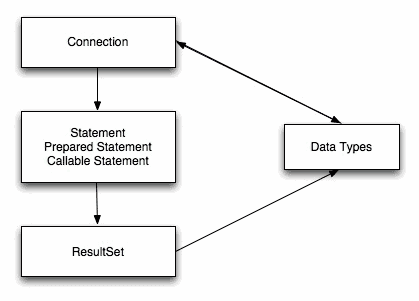

The core API is composed of classes and interfaces; these classes and interfaces work together as shown below:

Core Classes and Interfaces

Core Classes and Interfaces

The JDBC DriverManager

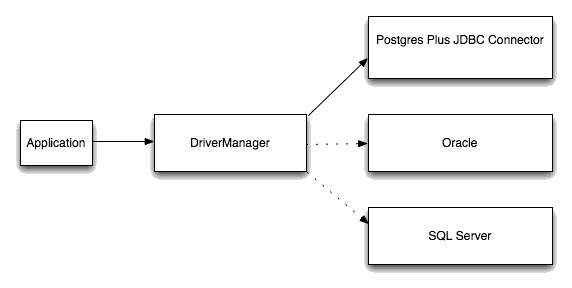

The figure below depicts the role of the DriverManager class in a typical JDBC application. The DriverManager acts as the bridge between a Java application and the backend database and determines which JDBC driver to use for the target database.

DriverManager/Drivers

DriverManager/Drivers

Advanced Server JDBC Connector Compatibility

This is the current version of the driver. Unless you have unusual requirements (running old applications or JVMs), this is the driver you should be using. This driver supports PostgreSQL 9.6 or higher versions and requires Java 8 or higher versions. It contains support for SSL and the javax.sql package.

Deprecated support for Java 1.6 and 1.7. Previous version of EDB JDBC Connector v42.2.12.3 will continue to support Java 1.6 and 1.7 versions.
