Publications and subscriptions v7

Replication Server uses an architecture called publish and subscribe. The data made available for copying by a replication system is defined as a publication. To get a copy of that data, you must "subscribe" to that publication. The manner in which you subscribe is slightly different for single-master and multi-master replication systems.

In Replication Server, a publication is defined as a named set of tables and views in a database. The database that contains the publication is called the publication database of that publication.

In a single-master replication system, to get a copy of a Replication Server publication, you must create a subscription. A Replication Server subscription is a named association of a publication to a database to which to copy the publication. This database is called the subscription database.

Similar to a single-master replication system, when creating a multi-master replication system, you first define a publication in the publication database. You then add one or more databases that you want to participate in this multi-master replication system. As you add each database, it is associated with this replication system. You don't create an explicit, named subscription in a multi-master replication system.

In a single-master replication system, replication occurs when Replication Server starts and completes either of the following processes:

  • Applies changes that were made to rows in the publication since the last replication occurred to rows in tables of the subscription database (called synchronization).
  • Copies rows of the publication to empty tables of the subscription database (called a snapshot). See Snapshot and synchronization overview.

The subscription tables are the tables in the subscription database created from corresponding tables or views in the publication.


In a single-master replication system, Replication Server creates a table in the subscription database for each view contained in the publication.

In a multi-master replication system, the concept and definition of replication is nearly identical to a single-master replication system with the following modifications:

  • Synchronization can occur between any pair of databases (referred to as primary nodes) participating in the replication system.
  • A snapshot can occur from the publication database designated as the primary definition node to any of the other primary nodes.

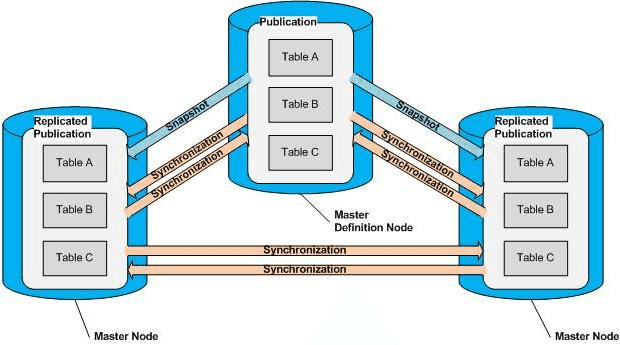

The following diagram shows a multi-master replication system with three primary nodes.

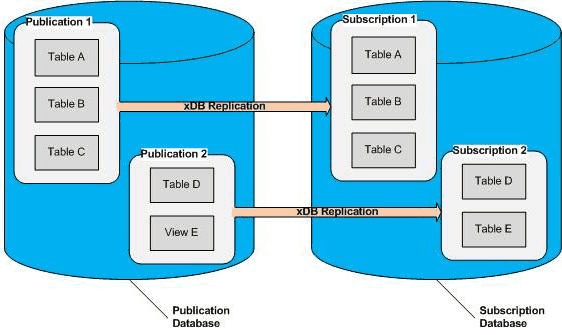

Publications in one database replicating to subscriptions in another database

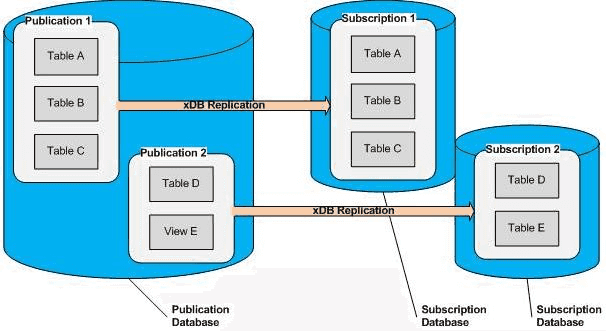

Publications replicating to two subscription databases

Publications in two databases replicating to one subscription database

This diagram shows that a table that was created as a member of a subscription can be used in a publication replicating to another subscription. This scenario is called cascading replication.

*Cascading Replication: Tables used in both a subscription and a publication*

The following diagram shows a multi-master replication system with three primary nodes.

*Multi-master replication system*
