Importing Postgres databases v1

This section describes how to import one or more existing PostgreSQL databases inside a brand new EDB Postgres for Kubernetes cluster.

The import operation is based on the concept of online logical backups in PostgreSQL, and relies on pg_dump via a network connection to the origin host, and pg_restore. Thanks to native Multi-Version Concurrency Control (MVCC) and snapshots, PostgreSQL enables taking consistent backups over the network, in a concurrent manner, without stopping any write activity.

Logical backups are also the most common, flexible and reliable technique to perform major upgrades of PostgreSQL versions.

As a result, the instructions in this section are suitable for both:

  • importing one or more databases from an existing PostgreSQL instance, even outside Kubernetes
  • importing the database from any PostgreSQL version to one that is either the same or newer, enabling major upgrades of PostgreSQL (e.g. from version 10.x to version 14.x)
Warning

When performing major upgrades of PostgreSQL you are responsible for making sure that applications are compatible with the new version and that the upgrade path of the objects contained in the database (including extensions) is feasible.

In both cases, the operation is performed on a consistent snapshot of the origin database.

Important

For this reason we suggest to stop write operations on the source before the final import in the Cluster resource, as changes done to the source database after the start of the backup will not be in the destination cluster - hence why this feature is referred to as "offline import" or "offline major upgrade".

How it works

Conceptually, the import requires you to create a new cluster from scratch (destination cluster), using the initdb bootstrap method, and then complete the initdb.import subsection to import objects from an existing Postgres cluster (source cluster). As per PostgreSQL recommendation, we suggest that the PostgreSQL major version of the destination cluster is greater or equal than the one of the source cluster.

EDB Postgres for Kubernetes provides two main ways to import objects from the source cluster into the destination cluster:

  • microservice approach: the destination cluster is designed to host a single application database owned by the specified application user, as recommended by the EDB Postgres for Kubernetes project

  • monolith approach: the destination cluster is designed to host multiple databases and different users, imported from the source cluster

The first import method is available via the microservice type, while the latter by the monolith type.

Warning

It is your responsibility to ensure that the destination cluster can access the source cluster with a superuser or a user having enough privileges to take a logical backup with pg_dump. Please refer to the PostgreSQL documentation on "SQL Dump" for further information.

The microservice type

With the microservice approach, you can specify a single database you want to import from the source cluster into the destination cluster. The operation is performed in 4 steps:

  • initdb bootstrap of the new cluster
  • export of the selected database (in initdb.import.databases) using pg_dump -Fc
  • import of the database using pg_restore --no-acl --no-owner into the initdb.database (application database) owned by the initdb.owner user
  • cleanup of the database dump file
  • optional execution of the user defined SQL queries in the application database via the postImportApplicationSQL parameter
  • execution of ANALYZE VERBOSE on the imported database

Example of microservice import type

For example, the YAML below creates a new 3 instance PostgreSQL cluster (latest available major version at the time the operator was released) called cluster-microservice that imports the angus database from the cluster-pg96 cluster (with the unsupported PostgreSQL 9.6), by connecting to the postgres database using the postgres user, via the password stored in the cluster-pg96-superuser secret.

apiVersion: postgresql.k8s.enterprisedb.io/v1
kind: Cluster
metadata:
  name: cluster-microservice
spec:
  instances: 3

  bootstrap:
    initdb:
      import:
        type: microservice
        databases:
          - angus
        source:
          externalCluster: cluster-pg96
        #postImportApplicationSQL:
        #- |
        #  INSERT YOUR SQL QUERIES HERE
  storage:
    size: 1Gi
  externalClusters:
    - name: cluster-pg96
      connectionParameters:
        # Use the correct IP or host name for the source database
        host: pg96.local
        user: postgres
        dbname: postgres
      password:
        name: cluster-pg96-superuser
        key: password
Warning

The example above deliberately uses a source database running a version of PostgreSQL that is not supported anymore by the Community, and consequently by EDB Postgres for Kubernetes. Data export from the source instance is performed using the version of pg_dump in the destination cluster, which must be a supported one, and equal or greater than the source one. Based on our experience, this way of exporting data should work on older and unsupported versions of Postgres too, giving you the chance to move your legacy data to a better system, inside Kubernetes. This is the main reason why we used 9.6 in the examples of this section. We'd be interested to hear from you should you experience any issues in this area.

There are a few things you need to be aware of when using the microservice type:

  • It requires an externalCluster that points to an existing PostgreSQL instance containing the data to import (for more information, please refer to "The externalClusters section")
  • Traffic must be allowed between the Kubernetes cluster and the externalCluster during the operation
  • Connection to the source database must be granted with the specified user that needs to run pg_dump and read roles information (superuser is OK)
  • Currently, the pg_dump -Fc result is stored temporarily inside the dumps folder in the PGDATA volume, so there should be enough available space to temporarily contain the dump result on the assigned node, as well as the restored data and indexes. Once the import operation is completed, this folder is automatically deleted by the operator.
  • Only one database can be specified inside the initdb.import.databases array
  • Roles are not imported - and as such they cannot be specified inside initdb.import.roles

The monolith type

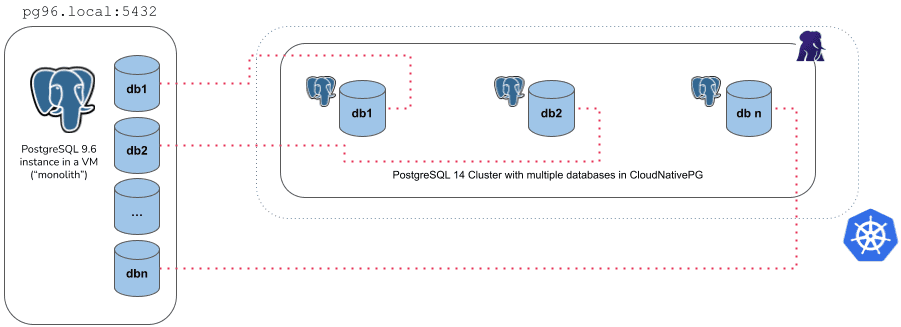

With the monolith approach, you can specify a set of roles and databases you want to import from the source cluster into the destination cluster. The operation is performed in the following steps:

  • initdb bootstrap of the new cluster
  • export and import of the selected roles
  • export of the selected databases (in initdb.import.databases), one at a time, using pg_dump -Fc
  • create each of the selected databases and import data using pg_restore
  • run ANALYZE on each imported database
  • cleanup of the database dump files

Example of monolith import type

For example, the YAML below creates a new 3 instance PostgreSQL cluster (latest available major version at the time the operator was released) called cluster-microservice that imports the accountant and the bank_user roles, as well as the accounting, banking, resort databases from the cluster-pg96 cluster (with the unsupported PostgreSQL 9.6), by connecting to the postgres database using the postgres user, via the password stored in the cluster-pg96-superuser secret.

apiVersion: postgresql.k8s.enterprisedb.io/v1
kind: Cluster
metadata:
  name: cluster-monolith
spec:
  instances: 3
  bootstrap:
    initdb:
      import:
        type: monolith
        databases:
          - accounting
          - banking
          - resort
        roles:
          - accountant
          - bank_user
        source:
          externalCluster: cluster-pg96
  storage:
    size: 1Gi
  externalClusters:
    - name: cluster-pg96
      connectionParameters:
        # Use the correct IP or host name for the source database
        host: pg96.local
        user: postgres
        dbname: postgres
        sslmode: require
      password:
        name: cluster-pg96-superuser
        key: password

There are a few things you need to be aware of when using the monolith type:

  • It requires an externalCluster that points to an existing PostgreSQL instance containing the data to import (for more information, please refer to "The externalClusters section")
  • Traffic must be allowed between the Kubernetes cluster and the externalCluster during the operation
  • You need to specify sslmode: disable in the connectionParameters section if you need to connect to a PostgreSQL instance without SSL
  • Connection to the source database must be granted with the specified user that needs to run pg_dump and retrieve roles information (superuser is OK)
  • Currently, the pg_dump -Fc result is stored temporarily inside the dumps folder in the PGDATA volume, so there should be enough available space to temporarily contain the dump result on the assigned node, as well as the restored data and indexes. Once the import operation is completed, this folder is automatically deleted by the operator.
  • At least one database to be specified in the initdb.import.databases array
  • Any role that is required by the imported databases must be specified inside initdb.import.roles, with the limitations below:
    • The following roles, if present, are not imported: postgres, streaming_replica, cnp_pooler_pgbouncer
    • The SUPERUSER option is removed from any imported role
  • Wildcard "*" can be used as the only element in the databases and/or roles arrays to import every object of the kind; When matching databases the wildcard will ignore the postgres database, template databases, and those databases not allowing connections
  • After the clone procedure is done, ANALYZE VERBOSE is executed for every database.
  • postImportApplicationSQL field is not supported
