Transparent data encryption (TDE) is an optional feature supported by version 15 of EDB Postgres Advanced Server and EDB Postgres Extended Server.
It encrypts any user data stored in the database system. This encryption is transparent to the user. User data includes the actual data stored in tables and other objects, as well as system catalog data such as the names of objects.
For more information about EDB’s TDE implementation: https://www.enterprisedb.com/docs/tde/latest/
In this blog post, we will go through 2 benchmarks that were performed by EDB’s Performance and Architecture Team (PEAT) to evaluate the impact of using EDB’s Transparent Data Encryption. We will then be able to answer the following questions:
- What is the impact of TDE on performance during a transactional workload?
- What is the impact of TDE on the upgrade process when upgrading an unencrypted database cluster to an encrypted database cluster?
Impact on Performance
The workload used in this benchmark is TPROC-C (HammerDB) with a database populated by 2000 warehouses (~200GB of data). The target database engine is EDB Advanced Server version 15.
Two tests are executed in this benchmark:
- ramping up tests with a growing number of virtual users
- long-run test (1 hour) executed with a high (75) number of virtual users.
For each test, we are measuring the Number of Orders Per Minute (NOPM), returned by HammerDB, for both a database cluster using TDE as well as another database cluster not using TDE.
The same performance tuning is applied to both database clusters.
|AWS instance type||c5d.18xlarge|
|$PGDATA||XFS / 900GB NVMe SSD|
|$PGWAL||XFS / 900GB NVMe SSD|
The following PostgreSQL settings have been applied on all database clusters:
shared_buffers='36GB' max_connections=1000 checkpoint_completion_target='0.93' checkpoint_timeout='30min' max_wal_size='300GB' effective_cache_size='100GB' random_page_cost=1 seq_page_cost=1 effective_io_concurrency=200
Test #1: Ramping Up
In this test, HammerDB is executed with a growing number (5 by 5) of virtual users, from five to 95. For each number of virtual users, the test duration is 20 minutes. This test is executed against both TDE enabled and no-TDE EPAS instances.
- From 0 to 60 virtual users, TDE and no-TDE NOPM rates are very close.
- From 60 to 95 virtual users, no-TDE NOPM rate is a bit higher. When using TDE, transactions are processed 2.5% slower than when not using TDE.
Test #2: Steady State
In this test, HammerDB is configured to use 75 virtual users. The test duration is set to 1 hour, with a ramp-up duration set to 5 minutes. This test is executed against both TDE-enabled and no-TDE EPAS instances.

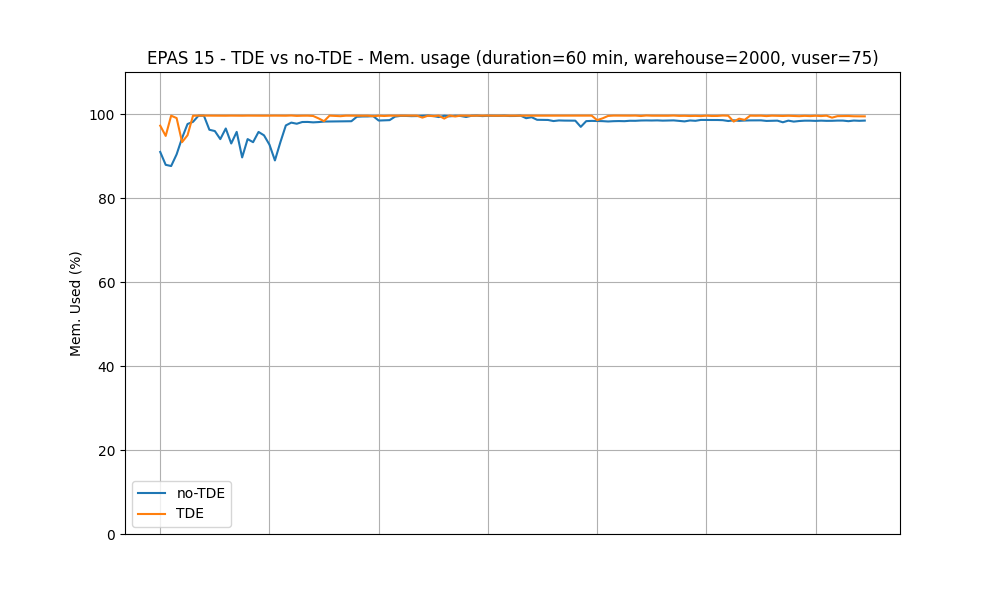

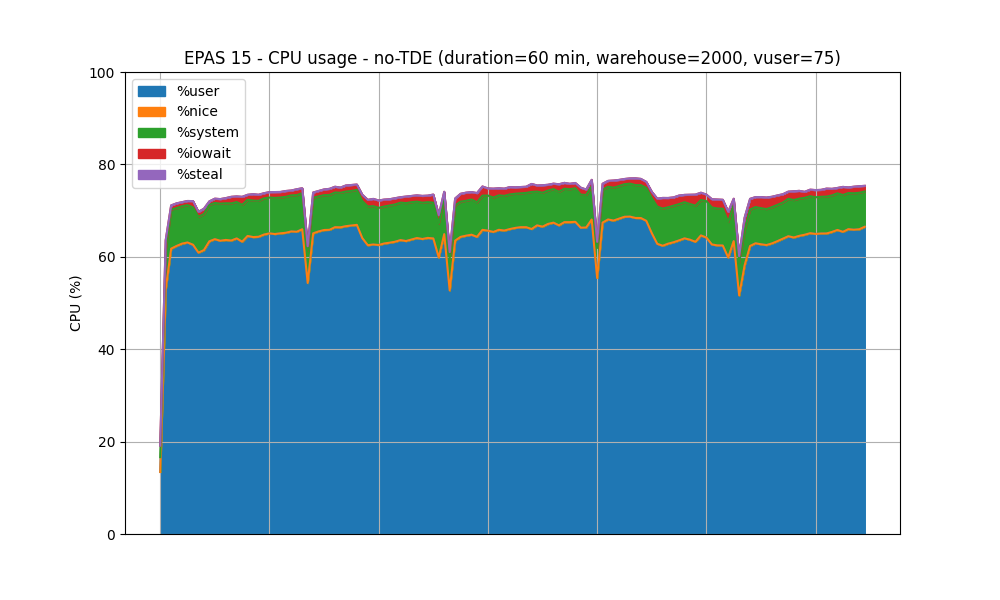

CPU usage - No-TDE

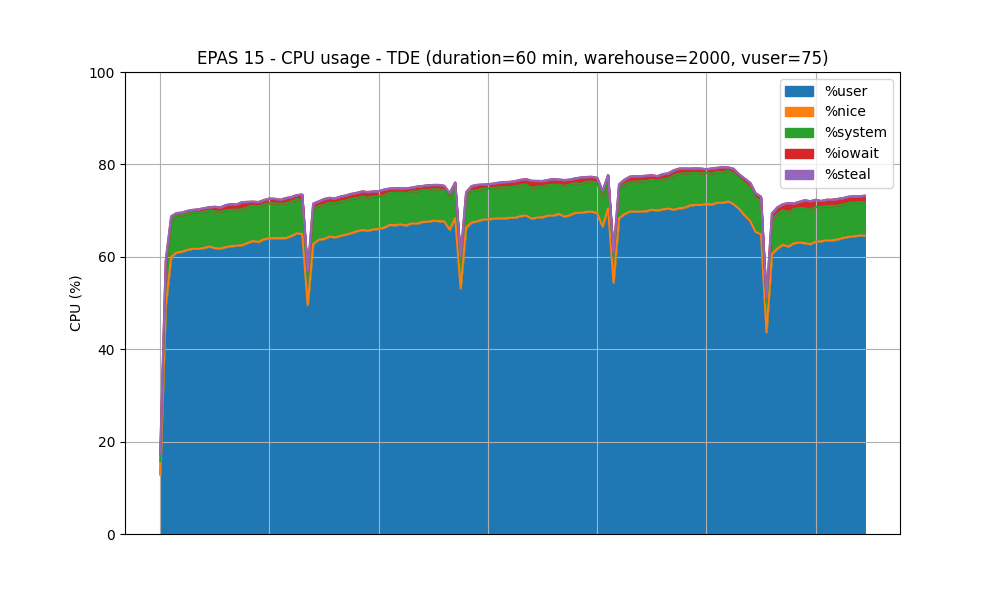

CPU usage - TDE

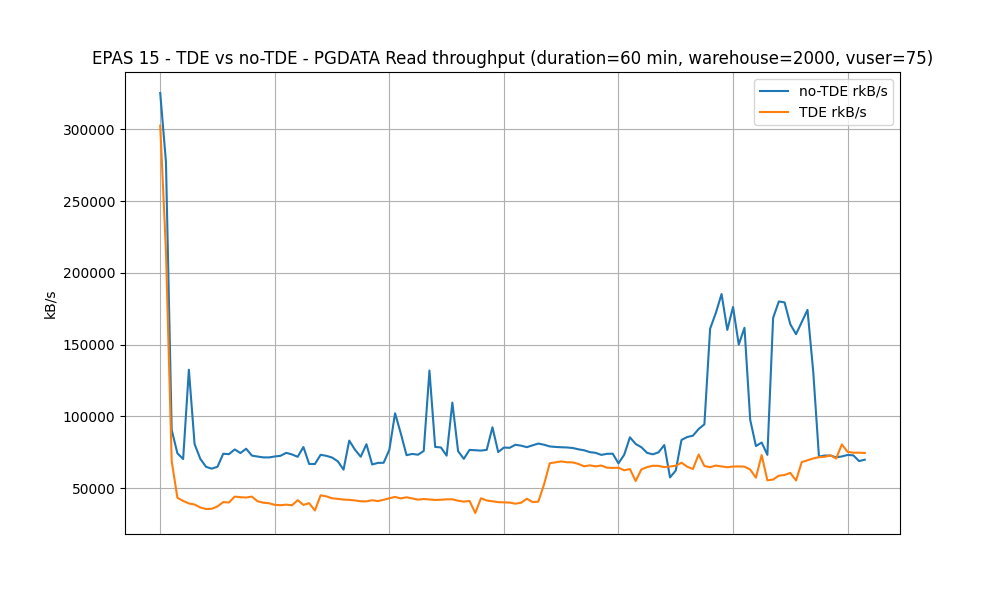

PGDATA Read throughput (kB/s)

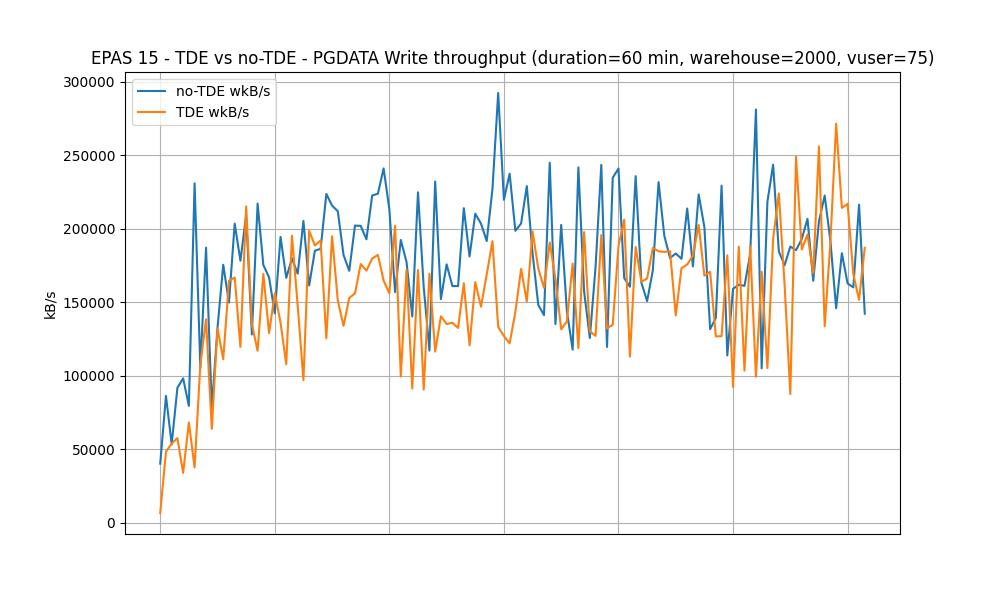

PGDATA Write throughput (kB/s)

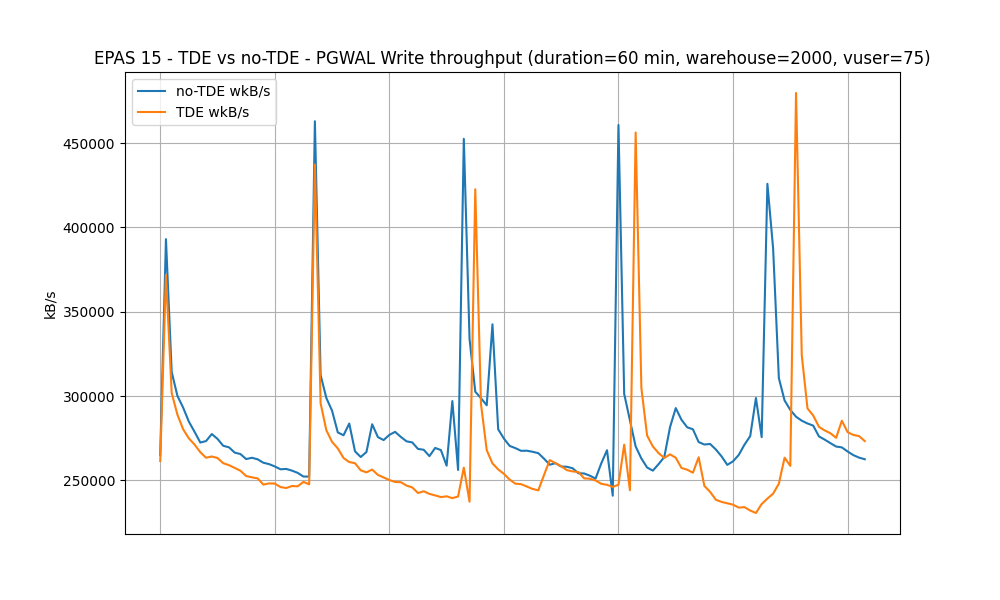

PGWAL Write throughput (kB/s)

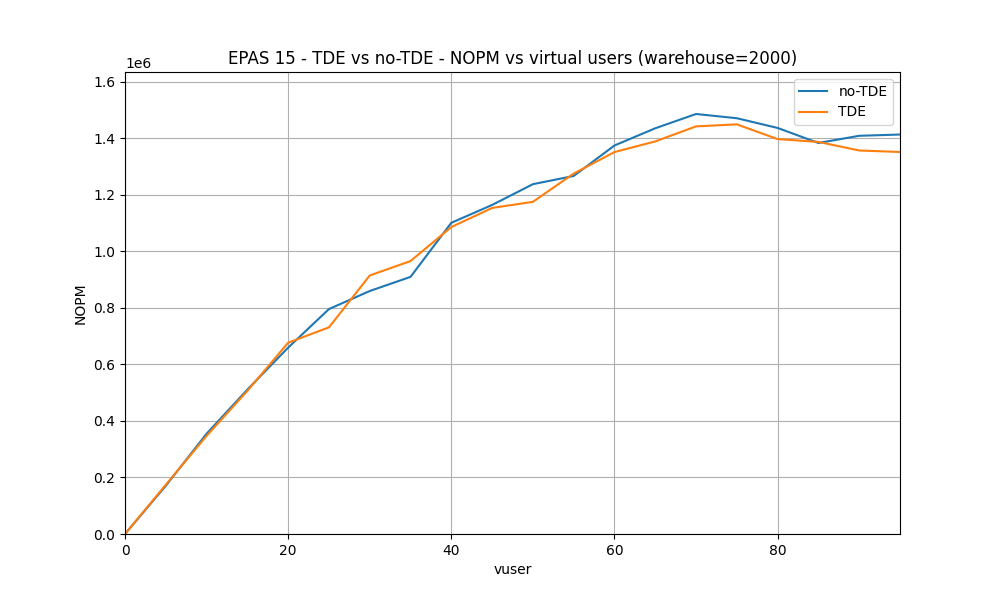

New-Orders per minute (NOPM)
Impact on the Upgrade Process, using pg_upgrade
Data encryption has a cost. In this benchmark, we are evaluating that cost when upgrading an unencrypted EPAS cluster in version 14 to both encrypted and not encrypted EPAS clusters in version 15. Thus, we will be able to measure encryption costs in terms of duration and CPU usage that the pg_upgrade operation takes.
The data set used in this benchmark is generated by HammerDB. Database size is 300GB (3000 TPROC-C warehouses).
The CPU usage and elapsed time the pg_upgrade process is taking are tracked and measured with the help of the time tool.
The Page checksum feature is enabled for both database clusters.
|Table name||Table size||Indexes size|
|stock||95 GB||8671 MB|
|order_line||78 GB||27 GB|
|customer||51 GB||7728 MB|
|history||6892 MB||1960 kB|
|orders||5170 MB||5423 MB|
|new_order||1140 MB||813 MB|
|item||10 MB||2240 kB|
|district||3760 kB||808 kB|
|warehouse||2208 kB||120 kB|
The following pg_upgrade commands are executed, depending if TDE is enabled or not.
When TDE is not enabled:
$ /usr/edb/as15/bin/pg_upgrade \ -d /pgdata/data \ -D /pgdata/data_15 \ -b /usr/edb/as14/bin \ -B /usr/edb/as15/bin \ --copy-by-block
When TDE is enabled:
$ /usr/edb/as15/bin/pg_upgrade \ -d /pgdata/data \ -D /pgdata/data_15 \ -b /usr/edb/as14/bin \ -B /usr/edb/as15/bin \ --copy-by-block \ --key-unwrap-command "cat /pgdata/data_15/pg_encryption/key.bin"
Note: using --copy-by-block is necessary when upgrading to an encrypted database cluster.
|AWS instance type||c5d.12xlarge|
|$PGDATA||XFS - 1 x 900GB NVMe SSD|
|$PGWAL||XFS - 1 x 900GB NVMe SSD|
System and User CPU time

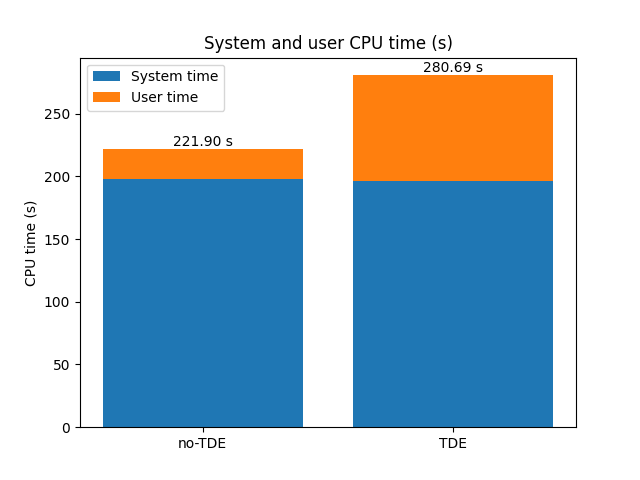

The following chart shows System and User CPU time elapsed during the upgrade process.

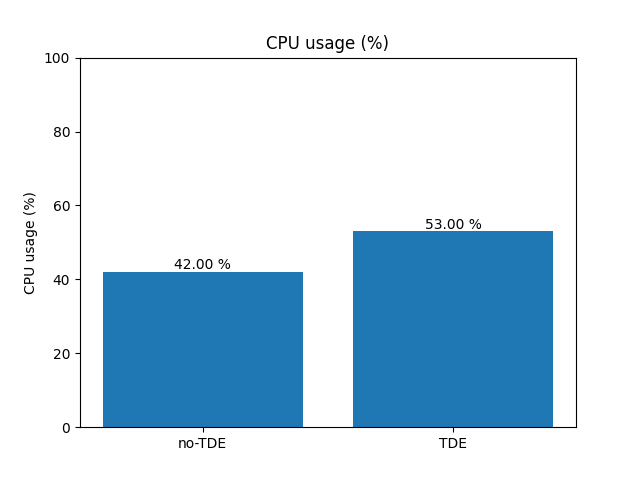

Overall CPU usage
CPU usage of the pg_upgrade process.

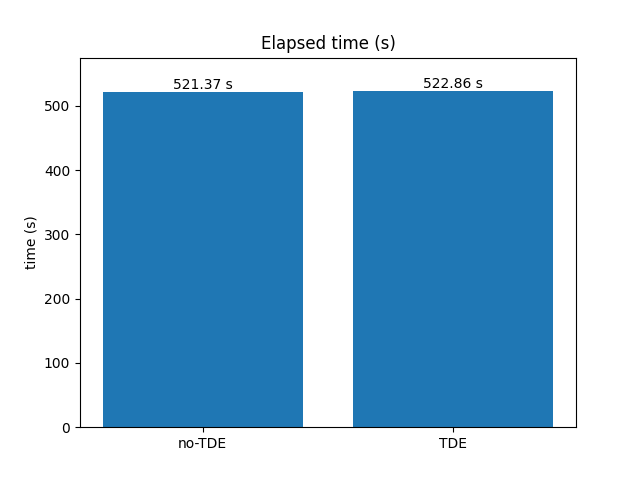

Time elapsed during pg_upgrade execution.
The performance benchmark highlights the following outcomes:
- When the system CPU is not overloaded, using a low number of virtual users, the impact of enabling TDE on performance is not significant.
- When the system CPU usage is intense, with a high number of virtual users, the impact of TDE has been measured to a 7.3% drop in terms of transaction rate that the database system can handle.
- In this TPC-C-like (TPROC-C) context, according to the PGWAL Write throughput chart, enabling TDE does not seem to lead to a higher database page rate or a bigger database size.
In the context of this benchmark, upgrading 300GB of data to an encrypted database cluster (using TDE) does not significantly increase the overall upgrade process duration.
Even if the upgrade process to the encrypted cluster takes 11% more CPU, this does not really affect the overall duration.
Compared to upgrading to an unencrypted database cluster, the time overhead is only 0.3%.
The benchmarks described in this article indicate that the use of EDB's TDE extension does not have a significant impact on transaction performance (<7.5%) or database upgrade times (0.3%).
